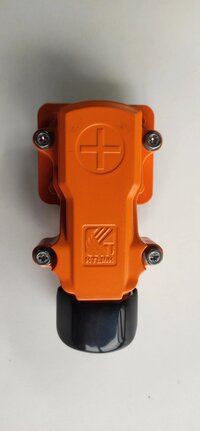

MINI-S50/S70_750Vdc 200-250A 1 POS with Shield/HVIL


Current rating: 200A=50mm²

250A=70mm²

Voltage rating:750V DC

Insulation resistance:≥5000 MΩ

Shielding:optional

HVIL: optional

Temperature range: -40° ~+125°

Code MINI-S50-1Z-M10-TW




Download: Model No_MINI-S50-1Z-M10-TW, MINI-S50-1F-M10-TW, MINI-S70-1Z-M10-TW, MINI-S70-1F-M10-TW Specification

Download: Model No_MINI-S50-1Z-M10-TW, MINI-S50-1F-M10-TW, MINI-S70-1Z-M10-TW, MINI-S70-1F-M10-TW 3D Drawing

Describe

•   1POS

•    Insulation resistance: ≥5000 MΩ (normal temperature); ≥50 MΩ (humid heat)

•   False proof design

•   High protection degree: IP67, IP68

•  Cable Section: 50mm²~70mm²

Shell

•   Part material: Nylon PA66+GF25

•   Production process: plastic compression molding

Seals
•   Part material: silicone rubber
•   Production process: plastic compression molding
