Download: 300W DC/DC Converter Specificaiton
Feature
● Nominal Input Voltage :27V.
● Input Voltage Range At Rated Load :18~36 VDC
● Output Voltage Range: 13VDC
● Ripple Voltage At Nominal Condition:<250mvppp At 25˚c
● Nominal Output Current : 10A
● Insulation Resistance > 1 Mega Ohm.
● Testing To Be Done As Per Signed Off Ctr
● Component Should Meet The Elv/rohs Requirement
● Ingress Protection: Ip65.
● Component Meets Pulse 5b Test For 24v System At Us*= 65v , Ri= 1ohm.
● Component Meets Radiated Emission =class 3
● Component Meets Conducted Emission=class3.
● Size: 450x380x190mm
● Qty:18 Nos.
● Weight:≦8.5KG
Series Specification
Item | Part Name | Model Name | Power (W) | Input Voltage (Vdc) |
Output Voltage (Vdc) |
Output Current (A) |
Efficiency | Size (mm) | Cooling system | Weight (Kg) | Certificate |

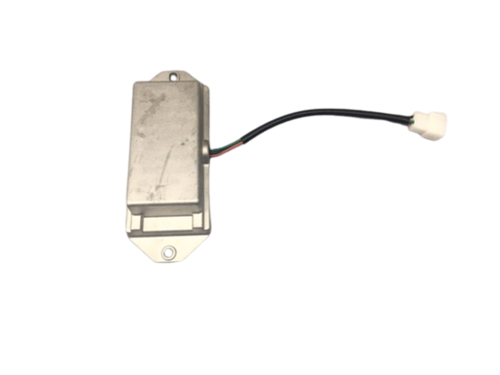

1 | 300W DC/DC CONVERTER |
ATD300-27S12 | 300 | 18~36 | 13 | 10 | ≥90% | 450x380x190 | N/A | 8.5 | N/A |
Description | Technical specifications | Remark | ||||||||||||||||||||||||||||
Operating temperature | -40~85℃ | Aluminum temp. | ||||||||||||||||||||||||||||
Rated output power | 300W | Peak power 360W | ||||||||||||||||||||||||||||
Input voltage range | 18~36VDC | |||||||||||||||||||||||||||||
Output rated voltage | 13VDC | Adjustable | ||||||||||||||||||||||||||||
Rated output current | 10A | |||||||||||||||||||||||||||||
Auxiliary power | 9~32VDC | VCC | ||||||||||||||||||||||||||||
Efficiency | ≥90% | Rated voltage | ||||||||||||||||||||||||||||
Output voltage ripple | ≤500mVPK-PK | |||||||||||||||||||||||||||||
Output voltage accuracy | ±0.5VDC | |||||||||||||||||||||||||||||
voltage wake up | CAN 、 KL15 | |||||||||||||||||||||||||||||
CAN communication | CAN-BUS | |||||||||||||||||||||||||||||
Quiescent Current | ≦5mA | Sleep mode/Battery current consumption under stop status | ||||||||||||||||||||||||||||
Protection characteristics | Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP, |
|||||||||||||||||||||||||||||
EMC characteristics | GB/T 18655-2010 | |||||||||||||||||||||||||||||
Dimensions | 450x380x190mm | |||||||||||||||||||||||||||||
Weight | ≦8.5KG |
