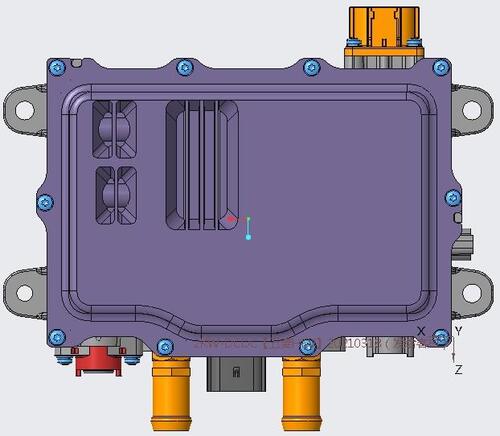

Download: 2KW DC/DC converter liquid cooling system
Model No.: ATD2K-320S14-W-TCDUN6000202
1.2 Major function Introduction
1.2.1 DC-DC Converter function
By receiving the control signal from the vehicle controller, the DCDC converter converts the high voltage of the power battery to the low voltage 14V output to meet the charging and load requirements of the subsequent on-board battery, and can realize its own state and load state feedback.
1.2.2 Self diagnosis and multiple protection functions
It has the functions of self diagnosis, input and output overvoltage, undervoltage protection, output short circuit protection, hardware fault protection, over-temperature protection and recovery of the whole machine;
1.2.3 Cooling Way Liquid cooling
- 4.1 DC/DC Specification parameters
|
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
DC/DC Parameter |
||||||
|
1、Input |
||||||
|
Input voltage range |
206 |
- |
454 |
Vdc |
|
|
|
2、Output |
||||||
|
Output voltage range |
13.6 |
|
14.0 |
Vdc |
|
|
|
Nominal output current |
- |
143 |
- |
A |
|
|
|
Peak output current |
- |
172 |
- |
A |
1.2 times of rated output current |
|
|
Output power |
- |
2000 |
- |
W |
|
|
|
Output peak power |
- |
- |
2400 |
W |
Working time≤6 minutes |
|
|
DC efficiency |
93 |
- |
- |
% |
Rated input voltage, load more than 30% |
|
|
Output voltage rising time |
|
|
300 |
mS |
Time for output voltage from 10% to 90% |
|
|
Output static current |
- |
- |
1 |
mA |
Output voltage is 14V |
|
|
3、Protection parameters |
||||||
|
Input over voltage protection point |
425 |
|
435 |
Vdc |
Shut off output |
|
|
Input voltage recovery point |
420 |
|
430 |
Vdc |
|
|
|
Input low voltage protection point |
225 |
|
235 |
Vdc |
Shut off output |
|
|
Input low voltage recovery point |
230 |
|
240 |
Vdc |
|
|
|
Output over voltage protection level |
15 |
|
16 |
Vdc |
15-16VDC，turn off，15VDC automatic recovery |
|
|
Output low voltage protection point |
6 |
|
7 |
Vdc |
6-7VDC，turn off， 9VDC automatic recovery |
|
|
Over temperature protection |
|
95 |
|
℃ |
DC/DC internal CPU inspect DC/DC internal temperature，when reach to this point, power goes down and derating output |
|
|
|
110 |
|
℃ |
DC/DC internal CPU inspect DC/DC internal temperature，when reach to this point, DC/DC shut off |
|
|
|
Output over current protection |
>178 |
A |
This value is for the hardware, it can be adjusted by the firmware |
|
||
