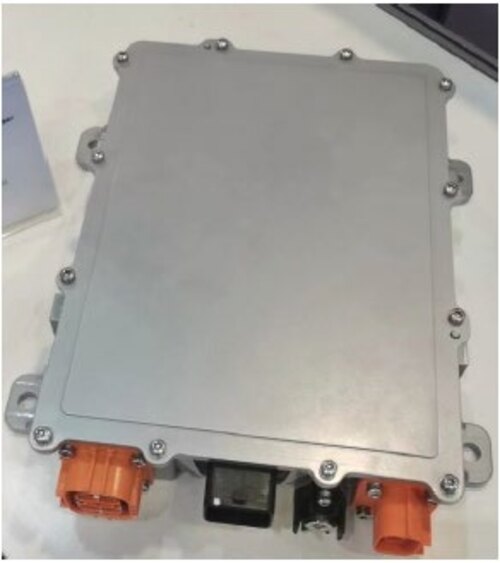

Combo 2.5KW DCDC Converter 6.6KW OBC Bidirectional
Model No. ATCDB66662252
Download: Combo 2 in 1
Combo 2.5KW DCDC Converter 6.6KW OBC
Model No. ATCDB66662252
Download:TTC-CD-P02-0_Q&A_ATCDB66662252(Annren)_2025-11-11
Features
1 Nominal Output Power:
OBC: 6.6KW ; DC/DC: 2.5KW
2 Input Voltage Range:
OBC: 90~264VAC ; DC/DC: 200~480VDC
3 Output Voltage Range:
OBC: 200~480VDC
DC/DC: 9 -16V, Nominal: 14V
4 Dimensions: 322*269*69.5mm
5 Weight: ≤6.5KG
6 Cooling System: Liquid, flow ≥8L/min
7 Ingress Protection Rating: IP67
8 V2L/ V2V : Supported
9 UDS Diagnostics: Supported (Basic SID )
10 Enclosure: Aluminum alloy
11 Software: Digital software design
12 Inverter Function: Supported by Bi-direction OBC
13 Online Upgrade & Fault Diagnosis: Supported
