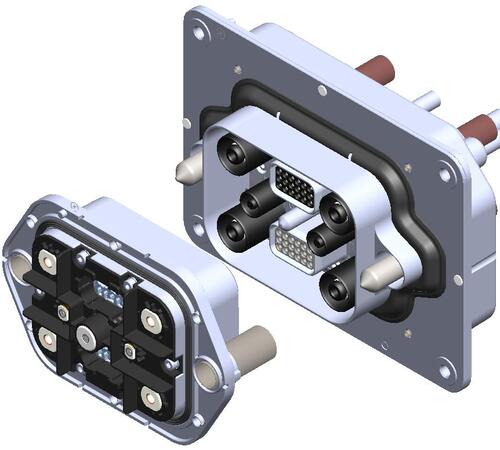

Technical Specification for 36PIN Heavy Truck
Battery Swap Connector
Model No.: PFSC-KYA-BS36120(3695)(3670)(3650)(3635)/PFSC-KYA-CP3695
Remarks :
1. The car end and battery end of this series of connectors are produced and shipped as wire harnesses by Ruikeda Company by
default. The specific wire harness requirements will be confirmed with our technical team.
2. The "optional" low-voltage terminals on the vehicle end in the table are matched according to the actual needs of the low-voltage
terminals when making the wiring harness.
3. The 70 square, 95 square, and 120 square power terminals are all connected by ultrasonic welding.
4. There are no power terminals or auxiliary power terminals in the table above, and they are sealed with blind plugs.
5. The battery end is in a full PIN state without blind blockage.
Note: This article describes the use of copper core wire material for the specifications; The dust cover is inside
the connector and does not need to be purchased separately.
2、Product introduction：
stable power and signal transmission between devices.
B. The shell material of this series of products is made of die cast aluminum alloy, which meets the requirements of flame retardancy RoHS、Requirements for high temperature resistance. And compared with the same type of battery swapping connector, it has the characteristics of strong current carrying capacity and more
PIN numbers.
C. This series of products can achieve ± 8mm in XY direction, 0-10mm in Z direction, and ≤ 3 ° floating
at the vehicle end.
D. This series of products has a wiring range of 50mm ² to 120mm ² and a rated working current of 200A to
400A, meeting the needs of customers with different electrical parameters.
E. The plugs and sockets of this series of products are equipped with anti electric shock function, which
can avoid accidental electric shock during use.
F. This series of products can also be made into cable components by our company according to customer needs, making it convenient for customers to use.
G. This series of products can be equipped with shielding and high-voltage interlock functions.
