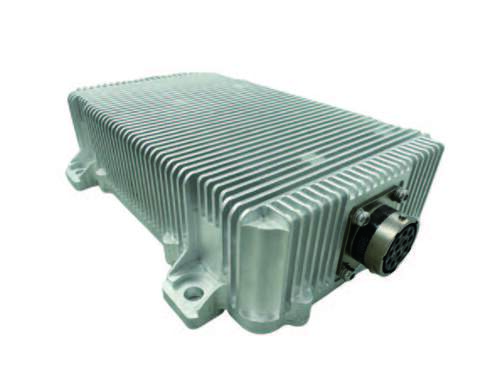

Download: 300W DC/DC Converter Natural Cooling System Specificaiton
Feature
● Nominal Input Voltage :27v.
● Input Voltage Range At Rated Load :200~800 Vdc
● Output Voltage Range: 12±0.5v/24±0.5v
● Ripple Voltage At Nominal Condition:<250mvppp At 25˚c
● Nominal Output Current : 25a/12.5a.
● Insulation Resistance > 1 Mega Ohm.
● Testing To Be Done As Per Signed Off Ctr
● Component Should Meet The Elv/rohs Requirement
● Ingress Protection: Ip65.
● Component Meets Pulse 5b Test For 24v System At Us*= 65v , Ri= 1ohm.
● Component Meets Radiated Emission =class 3
● Component Meets Conducted Emission=class3.
● Box Size (id)- 208x129x145mm
● Qty- 18 Nos.
● Weight- 1.5 Kg
Series Specification
Item | Part Name | Model Name | Power (W) | Input Voltage (Vdc) |
Output Voltage (Vdc) |
Output Current (A) |
Efficiency | Size (mm) | Cooling system | Weight (Kg) | Certificate |
1 | 300W DC/DC CONVERTER |
ATD300-540S12-N | 300 | 200~800 | 12 | 25 | ≥95% | 208x129x45 | Natural | 1.5 | GB/T |
2 | ATD300-540S24-N | 24 | 12.5 |
Description | Technical specifications | Remark | ||||||||||||||||||||||||||||
Operating temperature | -40~85℃ | Aluminum temp. | ||||||||||||||||||||||||||||
Rated output power | 300W | Peak power 360W | ||||||||||||||||||||||||||||
Input voltage range | 200~800VDC | |||||||||||||||||||||||||||||
Output rated voltage | 24VDC | Adjustable | ||||||||||||||||||||||||||||
Rated output current | 12.5A | |||||||||||||||||||||||||||||
Auxiliary power | 9~32VDC | VCC | ||||||||||||||||||||||||||||
Efficiency | ≥95% | Rated voltage | ||||||||||||||||||||||||||||
Output voltage ripple | ≤500mVPK-PK | |||||||||||||||||||||||||||||
Output voltage accuracy | ±0.5VDC | |||||||||||||||||||||||||||||
voltage wake up | CAN 、 KL15 | |||||||||||||||||||||||||||||
CAN communication | CAN-BUS | |||||||||||||||||||||||||||||
Quiescent Current | ≦5mA | Sleep mode/Battery current consumption under stop status | ||||||||||||||||||||||||||||
Protection characteristics | Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP, |
|||||||||||||||||||||||||||||
EMC characteristics | GB/T 18655-2010 | |||||||||||||||||||||||||||||
Dimensions | 208x129x45mm | |||||||||||||||||||||||||||||
Weight | ≦1.5KG |
Position | Function | Brand | Socket model | Plug model | ||||||||||||||||||||||||||
A | Control Side | LeadWay | L52-STP083-12P-W | L52-STP083-12P-W | ||||||||||||||||||||||||||
B | HV input | LeadWay | L52-BT6106-09PX-C | L52-BT6106-09PX-C |
