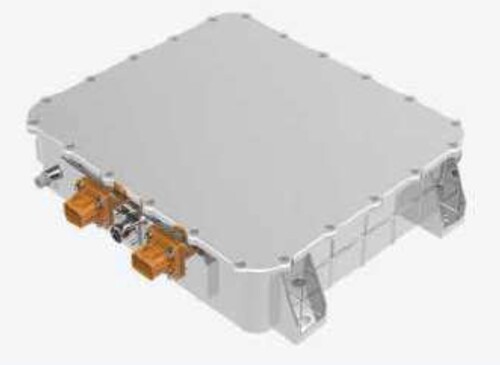

Download: 50KW – 10KW DC/DC Converter Bidirectional liquid
Model No.: ATRDB50KS10K-360S736W
Feature
1. Input Power(KW): 50
2. Input Voltage Range(VDC): 200-500
3. Input Current Range(A): 100-250
4. HV Bus Voltage Range(VDC): 550-850
5. Nominal HV Bus Voltage(VDC): 736
6. HV Current Range(A): 14-18
7. Cooling System: Liquid
8. IP Rating: IP67
9. CAN compatibility: CAN2.0 B
10. Enclosure: Aluminum alloy
11. Isolated: Non Supported
12. Software: Digital software design
13. Online Upgrade & Fault Diagnosis: Supported
