Download: 250~420V in 28V out 6KW DC/DC Converter Liquid
Model No.: ATRD6K-355S28W
Feature
1. Output Power(KW): 6
2. Input Voltage Range(VDC): 250 ~ 420
Nominal Input Voltage(VDC): 355
3. Output Voltage Range(VDC): 27 ~ 28.5
Rated Output Voltage(VDC): 28
4. Output Current Continuous(A): 0~220
5. Output Current Max(A): 220

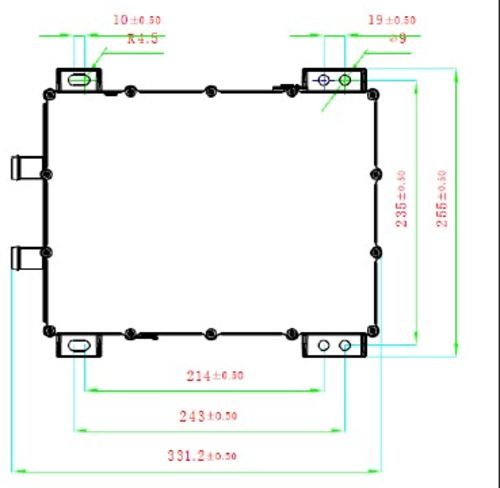

6. Dimensions(mm): 331.2x255
7. Weight(KG): 8.5 ±0.5
8. Cooling System: Liquid
9. IP Rating: IP67
10. CAN compatibility: CAN2.0 B
11. Enclosure: Aluminum alloy
12. Isolated: Supported
13. Software: Digital software design
14. Online Upgrade & Fault Diagnosis: Supported
