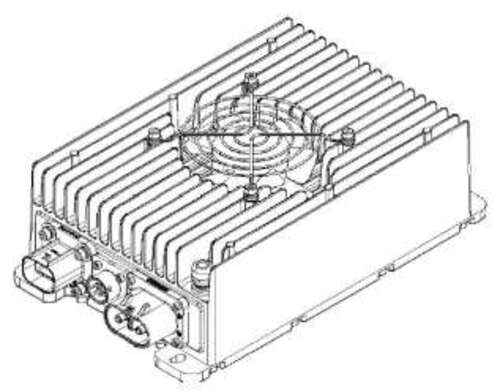

Download: 1.8KW DC/DC Converter Fan Cooled System Series
| Items | Model No. | Input Voltage | Rated Output | Output Voltage | Output Current |
| Range(Vdc) / Norminal | (Vdc/A) | Range(Vdc) | Range(A) | ||
| 1 | ATRD1K8-xxxS14F | 80-200 / 96 or 144 | 14/129 | 0-16 | 0-129 |
| 2 | ATRD1K8-360S14F | 200-450 / 360 | 14/129 | 0-16 | 0-129 |
| 3 | ATRD1K8-360S54F | 200-450 / 360 | 54/33 | 0-16 | 0-129 |
| 4 | ATRD1K8-xxxS14F | 400-700 / 540 or 640 | 14/129 | 0-68 | 0-33 |
Features
1. Weight(KG): ≤ 3.5
2. Cooling System: Fan
3. IP Rating: IP67
4. CAN compatibility: CAN2.0 B SAE J1939
5. Enclosure: Aluminum alloy
6. Isolated: Supported
7. Software: Digital software design
8. Online Upgrade & Fault Diagnosis: Supported
