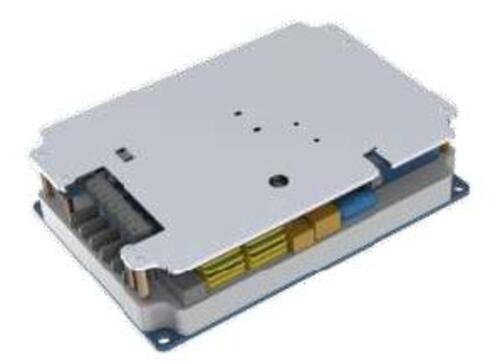

Integrated 3.3KW On-Board Charger Module Technical Specification

Model No.:ATRC3K3-XXXXXXM series

Output Power(KW): 3.3

Output Voltage Range(VDC): 0 ~ 720

Rated Output Voltage(VDC): 540

Output Current Range(A): 0~ 6

Input Voltage(VAC): 90~265

Download: Integrated 3.3KW On-Board Charger Module Technical Specification
Model No. : ATRC3K3-XXXXXXM series

Download: 3D Drawing

Model List

Model	Input Voltage	Output Power	Rated Output Voltage	Output Voltage/Current Range	3D Model
ATRC3K3-54006M	90~265VAC	3.3KW	540VDC	0~720V/0~6A	901.10020000.00.stp
ATRC3K3-36010M	90~265VAC	3.3KW	360VDC	0~500V/0~10A	901.10020000.00.stp
ATRC3K3-14422M	90~265VAC	3.3KW	144VDC	0~200V/0~22A	901.10060000.00.stp
ATRC3K3-10830M	90~265VAC	3.3KW	108VDC	0~140V/0~30A
ATRC3K3-07245M	90~265VAC	3.3KW	72VDC	0~95V/0~45A
ATRC3K3-04860M	90~265VAC	3.3KW	48VDC	0~68V/0~60A
ATRC3K3-024100M	90~265VAC	3.3KW	24VDC	0~36V/0~100A	901.10070000.00.stp
