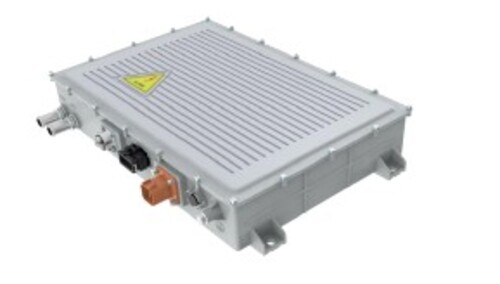

19.8KW On Board Charger Liquid Series
Model No. ATRC19K8_Series
1. Rated Output Power(KW): 19.8
2. Rated Input Voltage(Vac): 220/380 (Single Phase/3 Phase)
3. Dimensions(mm): 550 x 402.5 x 100.9
4. Weight(KG): ≤ 25±0.5
5. Cooling System: Liquid flow rate≧ 12L/min
6. IP Rating: IP67
7. CAN compatibility: CAN2.0 SAE J1939
8. Enclosure: Aluminum alloy
9. Pre-charge & isolated: Supported
10. Software: Digital software design
