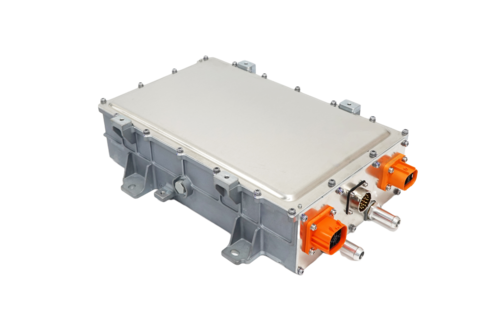

Download：Model No.: ATCB11KC-380S380(750)-W
Download：Model No_ATC11K-380S380-W, ATC11K-380S540-W, ATC11K-380S640-W 3D Drawing
Features
1 Rate Output Power: 11KW
2 Input Voltage Range: 3 phase 304~456VAC
3 Dimensions(mm): 369x238x98
4 Weight: ≤12KG
5 Cooling System: Liquid, flow rate ≥10L/min
6 Protection Level: IP67
7 Communication Method: CAN-BUS
8 Enclosure: Aluminum alloy
9 Software: Digital software design
10 Online Upgrade & Fault Diagnosis: Supported
11 Compatible with 1 phase and 3 phase charging piles
