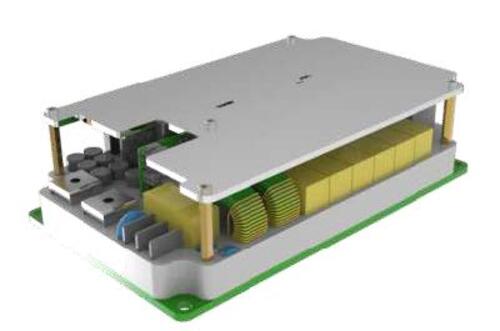

Input DC 200~500V Output 14V 1.8KW DC/DC Converter Module
Model No. ATRD1K8-360S14M
Download: Model No_ ATRD1K8-360S14M 3D Drawing
Features1. Output Power(KW): 1.8
2. Input Voltage Range(VDC): 200-500
3. Rated Input Voltage(VDC): 360
4. Output Voltage Range(VDC): 0~16
5. Rated Output Voltage(VDC): 14
6. Output Current Range(A): 0~129
7. Output Current Max(A): 129
8. Dimensions(mm): 180 x 120 x 50
9. Weight(KG): ≤ 1.8 ± 0.3
10. Communication: CAN2.0 B SAE J1939
11. Enclosure: Aluminum alloy
12. Isolated: Supported
13. Software: Digital software design
14. Online Upgrade & Fault Diagnosis:
Supported
