Download:REMII Series Multi-Core 40A Connector
Technical Specification Sheet

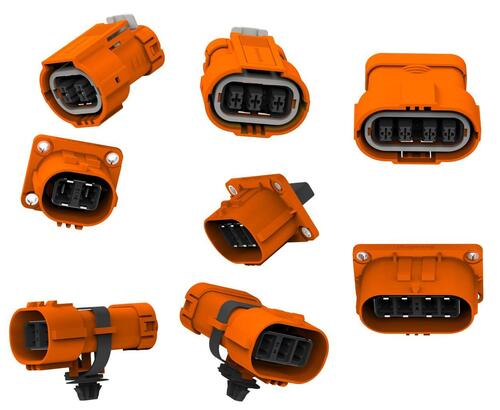

Model No.:REM II-T2PAH-2.5-A
Download:REMII Series Multi-Core 40A Connector
Technical Specification Sheet 2D
Download: Model No_ 1_REMⅡ三芯法兰插座 3D Drawing
Download: Model No_ 2_REMⅡ两芯法兰插座 3D Drawing
Download: Model No_ 3_REMⅡ两芯插头 3D Drawing
Download: Model No_ 4_REMⅡ三芯插头 3D Drawing
Technical specifications：
1．Electrical characteristics：
◆ Rated current：16A (compatible with 2.5mm² cables)；
32A (suitable for 4mm² cables)；
40A (suitable for 6mm² cables)；
----Note: You can also refer to Section 6 of the specifications, “Connector Temperature Rise Curve and Derating Curve,” to confirm
the safe current at different temperatures.
◆ Rated voltage：1000V DC；
◆ Voltage resistance：When the high-voltage interlocking plugs are not properly aligned, the voltage between them must be
≥1000V (AC) for 1 minute without breakdown.；
Other ≥3500V (AC) 1 min no breakdown；
◆ Insulation resistance：The high-voltage interlocking socket between the front seat and the rear seat is ≥1000MΩ.；
Other ≥5000MΩ
◆ Shielding: Optional
◆ High pressure interlock: Optional
2. Mechanical properties：
◆ Mechanical life: 50 times；
◆ Vibration: USCAR-2 V2 level.
3. Work environment：
◆ Temperature：-40℃～+125℃；
◆ Humidity: Below 95% (at 40°C)；
◆ Salt spray rating: 48 hours (5% NaCl neutral salt spray)；
◆ Protection rating: IP68 (when the head is connected, it can be submerged in 1 meter of water for 48 hours without water ingress),
IP6K9K；
◆ Flame retardant rating：UL94-V0.
