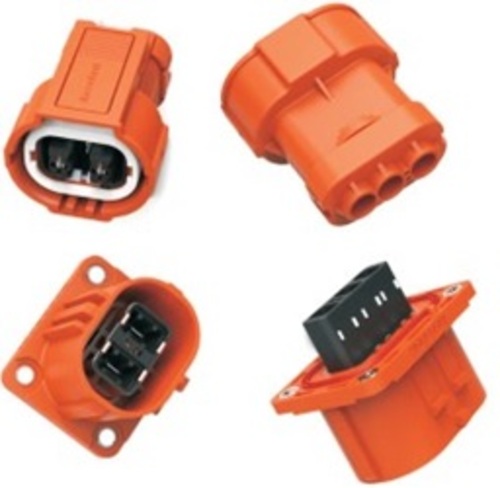

HV_Connector_REMII


Current rating:16A(For2.5mm2cable);

25A(For4mm2cable);

40A(For6mm2cable);

Voltage rating:700V DC

Withstand voltage:3000V AC 1 min

Insulation resistance:3000MΩ

Shielding:optional

HVIL: optional

Code REM_II





Download:HVlL Plastic Shell Connector with Shield (REM II)

Features/Application

•   This series of connectors are mainly applied in electric vehicle, providing stable high voltage, small current transmission among systems.

•   The outer shell is molded in engineering plastics with excellent flame-retardant and high temperature resistant ability, it also can meet the demand of the RoHS. Comparing to same sized metal connectors, it has lower cost and lighter weight.

•   This series of connectors have locking catch structure and secondary locking system. The connector requires smaller installation space.

•   Current rating range 16A~40A, supporting cable section from 2.5mm2 to 6.0mm2 to meet various electrical performance.

•   Both plug and jack have electric shock protection function.

•   Assembly manufacturing service as required.

•   Excellent sealing performance, can meet IP67 when mated.

•   This series of connectors can be interchanged with the original REM plugs.

•   The feature of shield and HVIL (High Voltage Inter-lock) are optional.

Mechanical Property

Mating cycle: >50 times

Vibration: 10~80 Hz, amplitude 0.75

81~500Hz, 20g

               500~2000Hz, 18g


Environmental Property

Working temperature: -40° ~+130°

Relative humidity: 95%(40°)

Sealing: IP67 in mated condition

Flame retardant: UL94 V-0


Material

Shell: thermoplastic flame-retardant

Contact: copper alloy nickle plated

Seal: rubber or elastomer


Cable range:

cable range

Cable cover size

2.5mm2 non-shielded cable

ø3.3mm ~ ø4.1mm

4mm2 non-shielded cable

ø4.0mm ~ ø4.8mm

6mm2 non-shielded cable

ø4.6mm ~ ø5.4mm

2.5mm2 shielded cable

ø5.3mm ~ ø6.1mm

4mm2 shielded cable

ø6.1mm ~ø6.9mm

6mm2 shielded cable

ø6.1mm ~ ø6.9mm



Material Model

No.

Product Description

Model No.

Keywords

1

2 POS Plug(REM II)

REM II -T2PAH-2.5-A

Plug、2 POS、Shield、Key position: A、HVIL、2.5mm2

2

2 POS Jack(REM II)

REM II -Z2PAH-2.5-A

Flange Jack、2 POS、Shield、Key position: A、HVIL、2.5mm2

3

3 POS Plug(REM II)

REM II -T3PAH-2.5-A

Plug、3 POS、Shield、Key position: A、HVIL、2.5mm2

4

3 POS Jack(REM II)

REM II -Z3PAH-2.5-A

Flange Jack、3 POS、Shield、Key position: A、HVIL、2.5mm2


Note:
1. There are many types of the REM II, please choose your proper type according to the following ordering Information. At the end of the extensive character are A.
2. You would better use non-shielded cable to cost down, if the flange Jack is assembled in the outside of the metal case.
