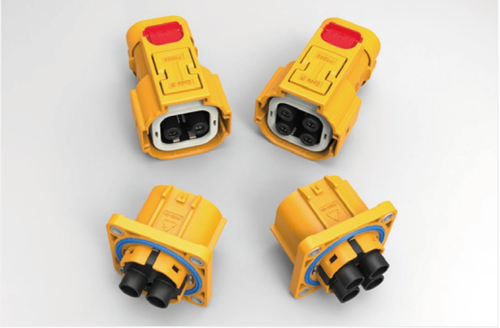

REL_1000Vdc 16A-60A 2/4 POS with Shield/HVIL


Model No.: T2PAH-10-A / Z2PAH-10-A

Current rating: 16A=2.5mm

25A=4mm

40A=6mm

60A=10mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

Code REL





Download: REL_1000Vdc 16A-60A 2/4 POS with Shield/HVIL Specification


Download: REL_1000Vdc 16A-60A 2/4 POS with Shield/HVIL 3D Drawing

Describe

• 2/4POS

• Plastic shell

• Secondary locking structure

• False proof design

• High protection degree: IP6K9K, IP68

• 4 Anti-misplug

• Cable Section: 2.5mm2

• IPTC, OBC, PDU
