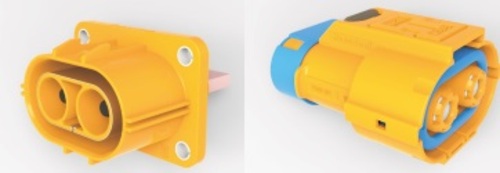

REN1_1000Vdc 80A-125A 2 POS with Shield/HVIL


Model No.: 2TAH-25P-B-TW / 2ZPATH-B-TW

Current rating: 80A=16mm

125A=25mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

Code HV_CONNECTOR_REN1




Download:REN1_1000Vdc 80A-125A 2 POS with Shield/HVIL Specification


Download: REN1_1000Vdc 80A-125A 2 POS with Shield/HVIL 3D Drawing

Describe

• 2POS

• Plastic shell

• With secondary locking, delayed unlocking

• Anti-mis-touch design(IPXXB)

• High protection degree: IP6K9K, IP684

• Anti-mistake key positions

• Cable Section: 16mm2 ~ 25mm2

• Integrated Mask Interlocking Function for battery heating, OBC, PDU equipment
