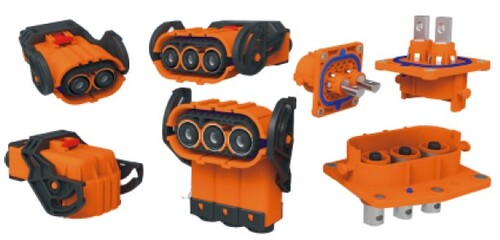

REG2_750Vdc 80A-200A 2/3 POS with Shield/HVIL


Voltage rating: 750V DC

Withstand voltage: 3000V AC 1min

Insulation resistance: 5000MΩ

Shielding: optional

HVIL: Yes

Code HV_CONNECTOR_REG





Download:REG2_750Vdc 80A-200A 2/3 POS with Shield/HVIL Specification


Download:REG2_750Vdc 80A-200A 2/3 POS with Shield/HVIL 3D Drawing

Features/Application

• REG series connectors provide stable high voltage power transmission among EV/HEV systems.

• Outer shell is molded in molded in thermoplastics with excellent flame-retartant and high temperature resistant ability. This REG series has many options (2 POS, 3 POS, straight, right angle), and comparing same sized metal connectors, it has lighter weight, small size and easy installation.

• Locking handle and secondary locking structure. This connector requires smaller operation space, especially for those application environment with limited space.

• Current rating range 80A~200A, contact diameter 8mm, supporting cable from 25mm2 ~ 50mm2 (section) to meet various electrical performance.

• Multi anti-misplug key position avoiding mistakes when same series connectors are applied on same devices.

• Both plug and jack have protection against electric shock.

• IP67 in mated condition.

• Assembly manufacturing service as required.

• HVIL (High Voltage Interlock) feature is optional. 360 degree shielding optional.


Current rating:


Contact

Cable Range

Current Rating

Cable Type

Ø8mm

16mm2

80A

Shield or Non-Shield is optional

25mm2

120A

35mm2

180A

50mm2

200A


Environmental Property
Working temperature: -35° ~+125°

Relative humidity: 95%(40°)

IP68B in mated condition, plug and jack meet IPXXB separately

Flame retardant Grade: UL94-V0



Mechanical Property

Mating cycle: >750 times

Vibration: 10~80 Hz, amplitude 0.75

81~500Hz, 20g

500~2000Hz, 18g



Material

Shell: thermoplastic flame-retardant

Contact: copper alloy silver plated

Seal: rubber or elastomer



Ordering Information

Add to inquiry
