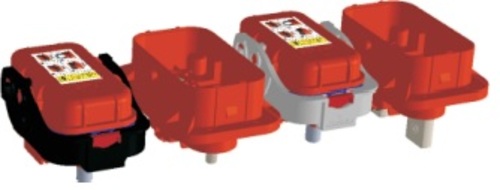

Manual Service Disconnector(MSD2)


Working Temperature: -40°C ~+125°C

Relative humidity: 95%(40°C)

Vibration: 10~55GHz, amplitude 0.75mm

Mechanical Shocks: 980m/s^2

Handle lock after retention: ≥200N

Code HV_CONNECTOR_MSD2





Download:Manual Service Disconnector(MSD2)

Technical Specification
Electrical property

contact resistance:total power contact resistance
1.5mΩ
                              signal contact resistance
10mΩ
current rating:250A (300A in 30 mins)
voltage rating:750V DC
voltage Resistance:3500V DC in 1 min (in normal status except fuse)
insulation resistance:3500M
Ω (normal status), 100 MΩ (damp heat)

Mechanical Property
Mating cycle: 500 times
Single contact separation force: 15N~30N
Sealing: after installation head plug IP68,plug
IPXXB separately and Silicone oil resistant option


Material
Shell: thermoplastic flame-retardant
Contact: copper alloy silver plated
Seal: silicon rubber


Ordering Information


Add to inquiry
