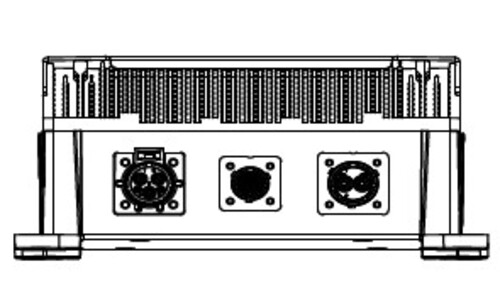

Download: 0-450V 20KW DC/DC Converter Bidirectional Fan
Model No. ATRDB20K-360S360F
Features
1 Output Power: 20KW
2 Input Voltage Range(VDC): 100-142
3 Output Voltage Range(VDC): 0-450
4 Rated Output Voltage(VDC): 360
5 Output Current Continuous(A): 55
6 Output Current Max(A): 150
7 Dimensions(mm): 302x211x113
8 Weight(KG):10.5±0.3
9 Cooling System: Fan
10 IP Rating: IP67
11 CAN compatibility: CAN2.0 B
12 Enclosure: Aluminum alloy
13 Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
