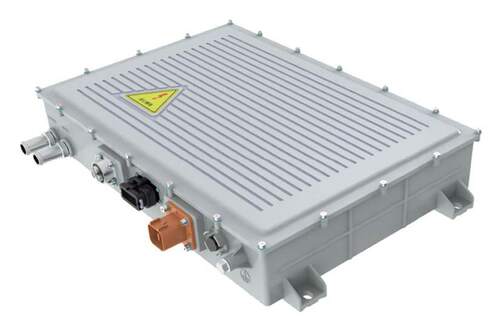

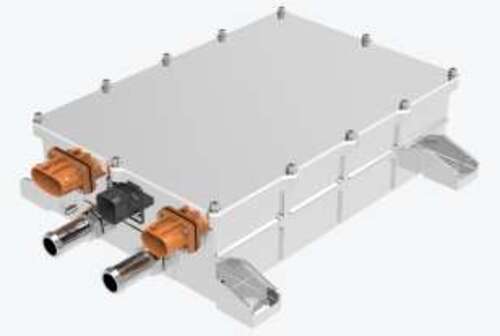

Download：10-120V 15KW DC/DC Converter Bidirectional liquid
Model No. ATRDB15K-90S350W
Features
1. Output Power(KW): 15
2. Voltage a Range(VDC): 10-120
3. Nominal a Voltage(VDC): 90
4. Current Range(A): 0-120
5. Voltage b Range(VDC): 0-450
6. Nominal b Voltage(VDC): 350
7. Current b Range(A): 0-120
8. Dimensions(mm): 305x206x92
9. Weight(KG): 8±0.5
10. Cooling System: Liquid
11. IP Rating: IP67
12. Communication: CAN2.0 B SAE J1939,
BOOTLOADER SUPPORTED
13. Enclosure: Aluminum alloy
14. Isolated: NON-Supported
15. Software: Digital software design
16. Online Upgrade & Fault Diagnosis: Supported
