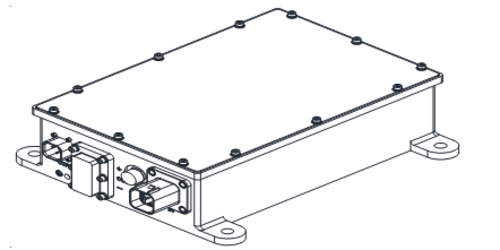

Download: 10~60V in 350V out 10KW DC/DC Converter Bidirectional Liquid Cooled
Model No.: ATRDB10K-55S350W
Features
1 Output Power(KW): 10
2 Input Voltage Range(VDC): 10-60
Rated Input Voltage(VDC): 55
3 Output Voltage Range(VDC): 0-450
4 Rated Output Voltage(VDC): 350
5 Output Current Continuous(A): 28
6 Output Current Max(A): 31
7 Dimensions(mm): 359x270x100
8 Weight(KG):8.5±0.5
9 Cooling System: Liquid flow ≥12L/min
10 IP Rating: IP67
11 CAN compatibility: CAN2.0 B
12 Enclosure: Aluminum alloy
13 Isolated: Non Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
