Download: 10~60V in 350V out 10KW DC/DC Converter Bidirectional Fan
Model No. ATRDB10K-55S350F

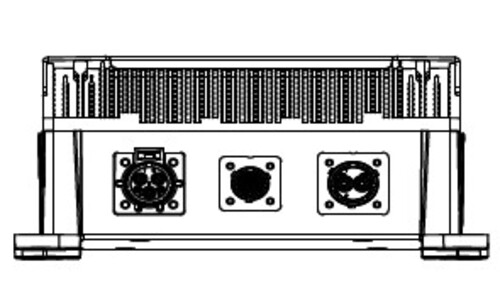

Download: Model No_ ATRDB10K-55S350F 3D Drawing
Features
1 Output Power(KW): 10
2 Input Voltage Range(VDC): 10-60
Rated Input Voltage(VDC): 55
3 Output Voltage Range(VDC): 0-450
4 Rated Output Voltage(VDC): 350
5 Output Current Continuous(A): 28
6 Output Current Max(A): 31
7 Dimensions(mm): 302x211x113
8 Weight(KG):10.5±0.3
9 Cooling System: Fan
10 IP Rating: IP67
11 CAN compatibility: CAN2.0 B
12 Enclosure: Aluminum alloy
13 Isolated: Non Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
