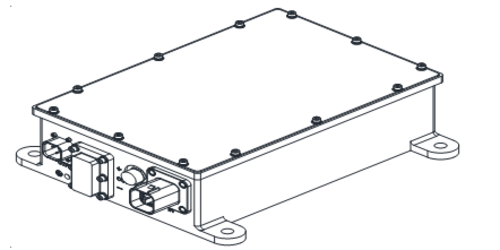

Download: 400~900V in 27V out 6KW DC/DC Converter Liquid
Model No.: ATRD6K-540S27W
Download: 400~900V in 27V out 6KW DC/DC Converter Liquid
Model No.: ATRD6K-540S27W
Feature
1. Output Power(KW): 6
2. Input Voltage Range(VDC): 400 ~ 900
Nominal Input Voltage(VDC): 540
3. Output Voltage Range(VDC): 0 ~ 32
Rated Output Voltage(VDC): 27
4. Output Current Continuous(A): 220
5. Output Current Max(A): 245
6. Dimensions(mm): 359x270x100
7. Weight(KG): 8.5 ±0.5
8. Cooling System: Liquid
9. IP Rating: IP67
10. CAN compatibility: CAN2.0 B
11. Enclosure: Aluminum alloy
12. Isolated: Supported
13. Software: Digital software design
14. Online Upgrade & Fault Diagnosis: Supported
