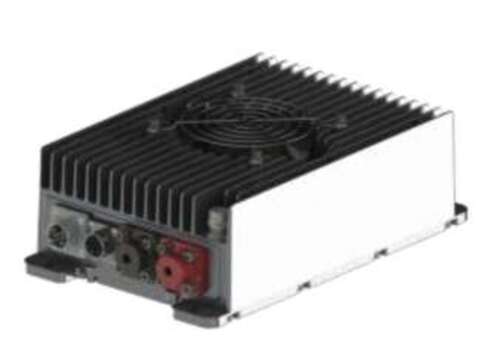

Input DC 400V~750V Output 27.5V 3KW DC/DC Converter Fan
Model No. ATRD3K-540S27.5F
Download: Model No_ ATRD3K-540S27.5F 3D Drawing
Features
1 Output Power: 3KW
2 Input Voltage Range(VDC): 400-750
Nominal Voltage(Vdc): 540
3 Output Voltage Range(VDC): 0~32
4 Rated Output Voltage(VDC): 27
5 Output Current Range(A): 0~109
6 Output Current Max(A): 109
7 Dimensions(mm): 277.5 x 168 x 92.5
8 Weight(KG): ≤ 3.5
9 Cooling System: Fan
10 IP Rating: IP67
11 Communication: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Pre-charge & Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
