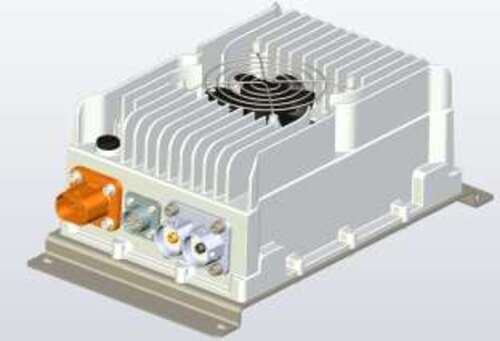

Download: Input DC 400-900V Output 13.8V 2.5KW DC/DC Converter Fan
Model No. ATRD2K5-640S138F
Download: Model No_ ATRD2K5-640S138F 3D Drawing
Features
1 Output Power: 2.5KW
2 Input Voltage Range(VDC): 400-900
Rated Input Voltage(VDC): 640
3 Output Voltage Range(VDC): 0~16
4 Rated Output Voltage(VDC): 13.8
5 Output Current Range(A): 0~178
Output Current Max(A): 178
6 Dimensions(mm): 291.2 x 168 x 92.6
7 Weight(KG): ≤ 4.5 ± 0.3
8 Cooling System: Fan
9 IP Rating: IP67
10 CAN compatibility: CAN2.0 B SAE J1939
11 Enclosure: Aluminum alloy
12 Isolated: Supported
13 Software: Digital software design
14 Online Upgrade & Fault Diagnosis: Supported
