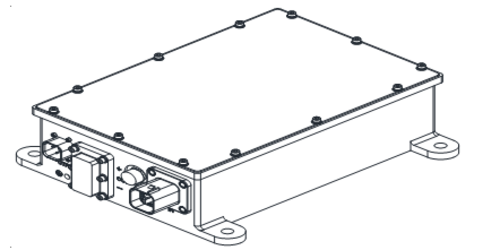

Download: 375~510V in 13.85V out 2.5KW DC/DC Converter Liquid Cooled
Model No. ATRD2K5-460S13.85W
Features
1 Output Power(KW): 2.5
2 Input Voltage Range(VDC): 375-510
Rated Input Voltage(VDC): 460
3 Output Voltage Range(VDC): 0-16
4 Rated Output Voltage(VDC): 13.85±0.35
5 Output Current Continuous(A): 178
6 Output Current Max(A): 178
7 Dimensions(mm): 359x270x100
8 Weight(KG):3.5±0.5
9 Cooling System: Liquid flow ≥6L/min
10 IP Rating: IP67
11 CAN compatibility: CAN2.0 B
12 Enclosure: Aluminum alloy
13 Isolated: Non Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
