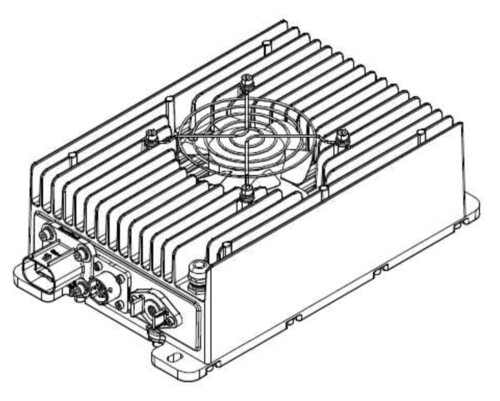

Download: Input DC 250V~450V Output 13.8V 2.5KW DC/DC Converter Fan
Model No. ATRD2K5-360S138F
Features
1 Rated Output Power(KW): 2.5 Peak: 3.0@6min
2 Input Voltage Range(VDC): 250-450
Nominal Voltage(VDC): 360
3 Output Voltage Range(VDC): 0~16
4 Rated Output Voltage(VDC): 13.8
5 Output Current Range(A): 0~178
6 Dimensions(mm): 291.2 x 168 x 92.6
7 Weight(KG): ≤ 6.5 ± 0.5
8 Cooling System: Fan
9 IP Rating: IP67
10 Communication: CAN2.0 B SAE J1939
11 Enclosure: Aluminum alloy
12 Pre-charge & Isolated: Supported
13 Software: Digital software design
14 Online Upgrade & Fault Diagnosis: Supported
