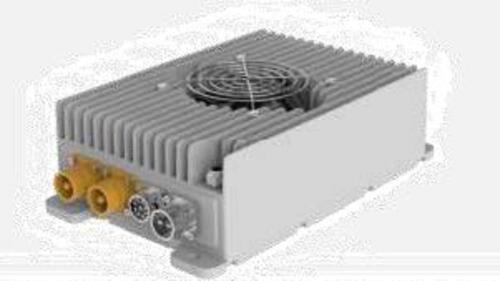

Download: Input DC 240-360V Output 1.8KW DC/DC Converter Fan
Model No. ATRD1K8-307S14F

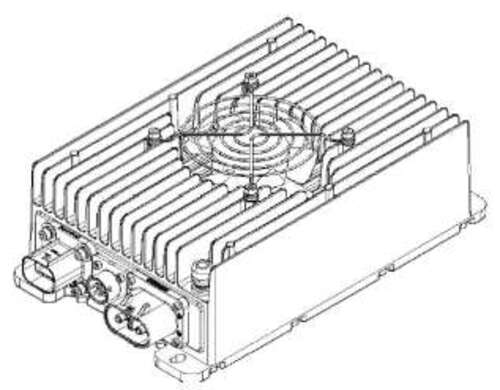

Download: Model No_ ATRD1K8-307S14F 3D Drawing
Features
1 Output Power: 1.8KW
2 Input Voltage Range(VDC): 240-360
3 Rated input Voltage(VDC):307
4 Output Voltage Range(VDC): 0~16
5 Rated Output Voltage(VDC): 14
6 Output Current Continuous(A): 110
7 Dimensions(mm): 292 x 168 x 93
8 Weight(KG): ≤ 3.5± 0.3
9 Cooling System: Fan
10 IP Rating: IP67
11 CAN compatibility: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
