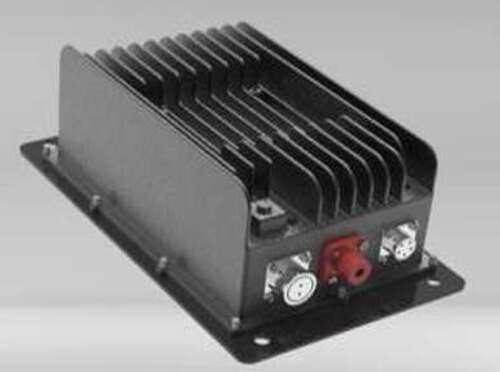

Input DC 36-60V Output 14.5V 1.5KW DC/DC Converter Fan Cooled Isolated
Model No. ATRD1K5-48S14.5FI
Features
1 Output Power: 1.5KW
2 Input Voltage Range(VDC): 36-60
Rated Input Voltage(VDC): 48
3 Output Voltage Range(VDC): 0~16
4 Rated Output Voltage(VDC): 14.5
5 Output Current Range(A): 0~144
Rated Out Current(A): 110
6 Dimensions(mm): 328 x 260 x 121
7 Weight(KG): ≤ 6.8
8 Cooling System: Fan
9 IP Rating: IP67
10 CAN compatibility: CAN2.0 B SAE J1939
11 Enclosure: Aluminum alloy
12 Isolated: Supported
13 Software: Digital software design
14 Online Upgrade & Fault Diagnosis: Supported
