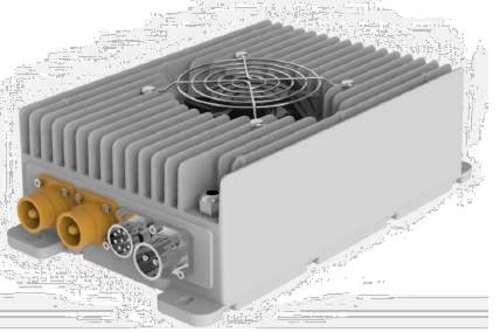

Input 250-365V1.5KW DC/DC Converter Fan
Model No. ATRD1K5-307S138F
Download: Model No_ ATRD1K5-307S138F 3D Drawing
Features
1 Output Power(KW): 1.5
2 Input Voltage Range(VDC): 250-365
Nominal Voltage(VDC): 307
3 Output Voltage Range(VDC): 9~15
4 Rated Output Voltage(VDC): 13.8(13.4~14.2)
5 Output Current Continuous(A): 75(1000W)
Peak(A): 110@1 Min(1500W)
6 Weight(KG): ≤ 3.5
7 Cooling System: Fan
8 IP Rating: IP67
9 CAN compatibility: CAN2.0 B SAE J1939
10 Enclosure: Aluminum alloy
11 Isolated: Supported
12 Software: Digital software design
13 Online Upgrade & Fault Diagnosis: Supported
