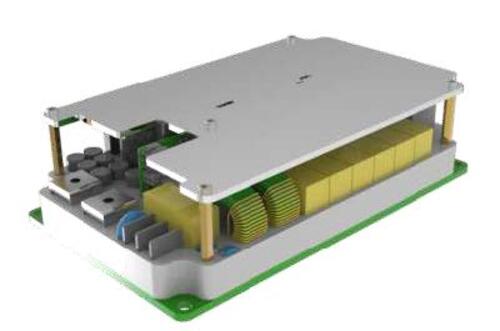

Input DC 80-200V Output 14V 1.2KW DC/DC Converter Module
Model No. ATRD1K2-96S14M
Download: Model No_ ATRD1K2-96S14M 3D Drawing
Features1. Output Power(KW): 1.2
2. Input Voltage Range(VDC): 80-200
3. Output Voltage Range(VDC): 0~16
4. Rated Output Voltage(VDC): 14
5. Output Current Range(A): 0~86
6. Output Current Max(A): 86
7. Dimensions(mm): 170 x 100 x 50
8. Weight(KG): ≤ 1.5 ± 0.3
9. Communication: CAN2.0 B SAE J1939
10. Enclosure: Aluminum alloy
11. Isolated: Supported
12. Software: Digital software design
13. Online Upgrade & Fault Diagnosis:
Supported
