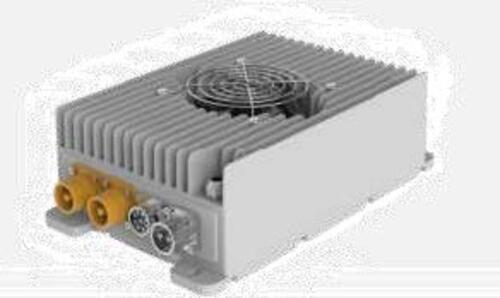

Input DC 324~450V Output 24V 1.2KW DC/DC Converter Fan Cooled
Model No. ATRD1K2-400S24F
Download: Input DC 324~450V Output 24V 1.2KW DC/DC Converter Fan Cooled
Model No. ATRD1K2-400S24F 3D Drawing
Features
1 Output Power(KW): 1.2K
2 Input Voltage Range(VDC): 324~450
3 Output Voltage Range(VDC): 0~32
4 Rated Output Voltage(VDC): 24
5 Output Current Range(A): 0-42
6 Output Current Max(A): 42
7 Dimensions(mm): 276 x 168 x 84
8 Weight(KG): ≤ 3.5 ± 0.3
9 Cooling System: Fan
10 IP Rating: IP67
11 Communication: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Pre-charge & isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
