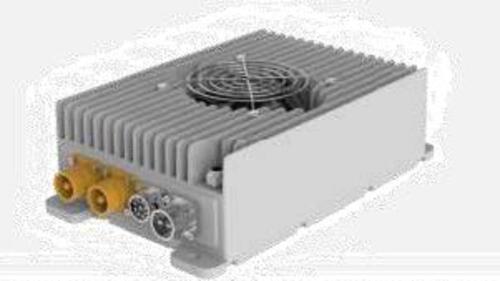

Download: Input DC 200~400V Output 14.2V 1.2KW DC/DC Converter Fan Cooled
Model No. ATRD1K2-300S14.2F
Download: Model No_ ATRD1K2-300S14.2F 3D Drawing
Features
1 Output Power(KW): 1.2K
2 Input Voltage Range(VDC): 200~400
Rated Input Voltage(VDC): 300
3 Output Voltage Range(VDC): 9~16
4 Rated Output Voltage(VDC): 14.2
5 Output Current Range(A): 0-86
6 Output Current Max(A): 86
7 Weight(KG): ≤ 3.5 ± 0.3
8 Cooling System: Fan
9 IP Rating: IP67
10 Communication: CAN2.0 B SAE J1939
11 Enclosure: Aluminum alloy
12 Pre-charge & isolated: Supported
13 Software: Digital software design
14 Online Upgrade & Fault Diagnosis: Supported
