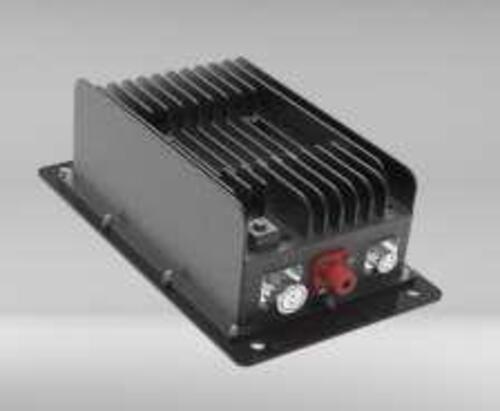

Input DC 80~120V Output 13.8V 1KW DC/DC Converter Nature Cooled
Model No. ATRD1K-96S138N
Download: Model No_ ATRD1K-96S138N 3D Drawing
Features1 Output Power(KW): 1
2 Input Voltage Range(VDC): 80~120
Rated Input Voltage(VDC): 96
3 Output Voltage Range(VDC): 12~14.5
4 Rated Output Voltage(VDC): 13.8
5 Output Current Range(A): 68.96-83.33
6 Output Current Max(A): 83.33
7 Weight(KG): ≤ 2.85
8 Cooling System: Fan
9 IP Rating: IP67
10 Communication: CAN2.0 B SAE J1939
11 Enclosure: Aluminum alloy
12 Pre-charge & isolated: Built in
13 Software: Digital software design
14 Online Upgrade & Fault Diagnosis: Supported
