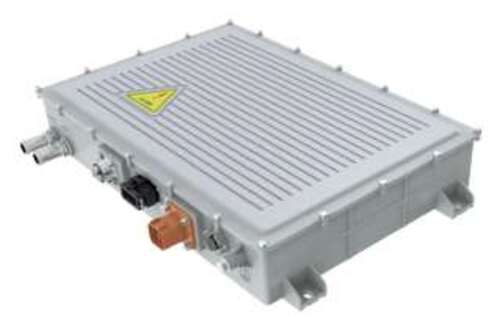

Input DC 450~750V Output 28V 10KW DC/DC Converter Liquid Cooled
Model No. ATRD10K-600S28W
1 Output Power(KW): 10
2 Input Voltage Range(VDC): 450-750
Rated Input Voltage(VDC): 600
3 Output Voltage Range(VDC): 0-32
4 Rated Output Voltage(VDC): 28
5 Output Current Range(A): 0~380
6 Output Current Max(A): 357
7 Dimensions(mm): 550x396x100
8 Weight(KG): ≤ 25
9 Cooling System: Liquid, flow rate ≥12L/min
10 IP Rating: IP67
11 Communication: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
