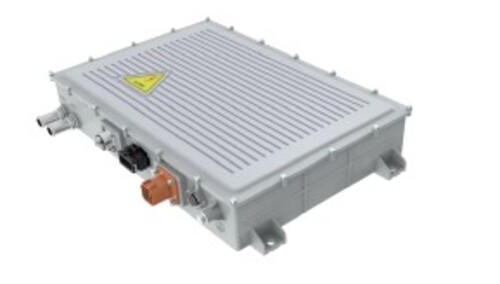

Input 380Vac Output 800Vdc 20KW On Board Charger Bidirectional liquid
Model No. ATRCB20K-80024W
1 Output Power(KW): 20
2 Input Voltage Range(VAC): 152~456 (3 Phase 5 wires)
Nominal Input Voltage(VAC): 380
3 Output Voltage Range(VDC): 0 ~ 950
4 Rated Output Voltage(VDC): 800
5 Output Current Range(A): 0~ 24
6 Output Current Max(A): 24
7 Dimensions(mm): 550x396x100
8 Weight(KG): ≤ 25
9 Cooling System: Liquid, flow rate ≥12L/min
10 IP Rating: IP67
11 Communication: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
