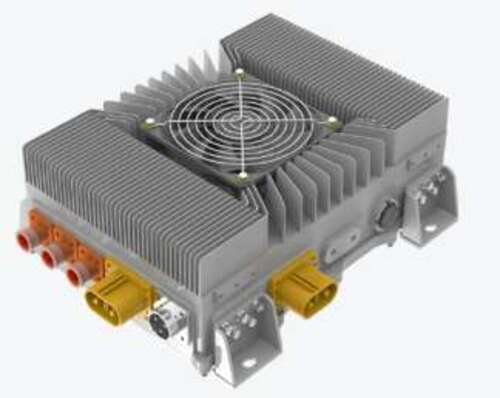

Download: 0-1000Vdc 0-80A 6.6KW On Board Charger Fan
Model No. ATRC6K6-xxxxxF
MODEL NO. TABLE
|
Model NO. |
Rated Voltage Out(Vdc) |
Voltage Out Range(Vdc) |
Current Out Range(A) |
|
ATRC6K6-80009F(I)(S) |
800 |
0-1000 |
0-9 |
|
ATRC6K6-54012F(I)(S) |
540 |
0-720 |
0-12 |
|
ATRC6K6-36018F(I)(S) |
360 |
0-500 |
0-18 |
|
ATRC6K6-14444F(I)(S) |
144 |
0-200 |
0-44 |
|
ATRC6K6-10860F(I)(S) |
108 |
0-140 |
0-60 |
|
ATRC6K6-08080F(I)(S) |
80 |
0-105 |
0-80 |
 |
The model no. will be added +I for charge mode IEC, +S for charge mode SAE The connectors for the housing is for reference only. Will be modified soon.
Features
2 Input Voltage Range (VAC): 90~290
3 Isolated: supported
4 Dimensions(mm): 300x211x115
5 Weight(KG): 10±0.5
6 Cooling System: Fan
7 Protection Level: IP67
8 Communication Method: CAN-BUS SAE J1772
9 Enclosure: Aluminum alloy
10 Software: Digital software design
11 Online Upgrade & Fault Diagnosis: Supported
