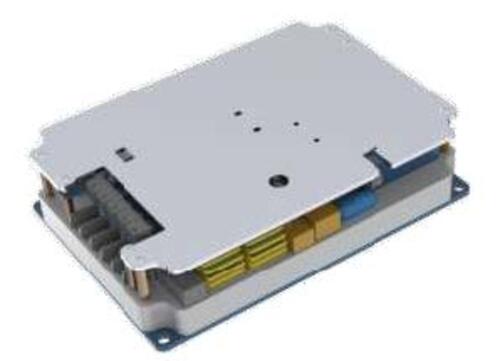

Input 90-265Vac Output 108Vdc 30A 3.3KW On Board Charger Module

Input 90-265Vac Output 108Vdc 30A 3.3KW On Board Charger Module

Model No.:ATRC3K3-10830M-S、ATRC3K3-10830M-I

Output Power(KW): 3.3

Output Voltage Range(VDC): 72 ~ 110

Rated Output Voltage(VDC): 108

Output Current Range(A): 0~ 30

Output Current Max(A): 30

Code ATRC3K3-10830M-S



Download: Input 90-265Vac Output 108Vdc 30A 3.3KW On Board Charger Module
Model No. : ATRC3K3-10830M-S
Model No. : ATRC3K3-10830M-I




Download:  3D Drawing

Features

A. Model No. : ATRC3K3-10830M-S
Charging Mode: SAE
B. Model No. : ATRC3K3-10830M-I
Charging Mode: IEC
Features
1 Output Power(KW): 3.3
2 Input Voltage Range(VAC): 90~265
3 Output Voltage Range(VDC): 72 ~ 110
4 Rated Output Voltage(VDC): 108
5 Output Current Range(A): 0~ 30
6 Output Current Max(A): 30
7 Dimensions(mm): 200x140x50
8 Weight(KG): 2.5 ±0.5
9 Communication: CAN2.0 B SAE J1939
10 Enclosure: Aluminum alloy
11 Pre-charge & Isolated: Supported
12 Software: Digital software design
13 Online Upgrade & Fault Diagnosis: Supported
