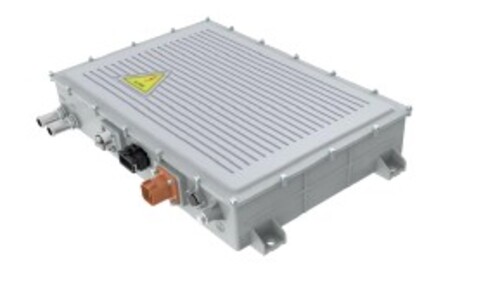

Input 220Vac Output 690Vdc 13KW On Board Charger liquid
Model No. ATRC13K-69018W-S
Download: Model No_ ATRC13K-69018W-S 3D Drawing
Features
1 Output Power(KW): 13
2 Input Voltage Range(VAC): 90~265 (1 Phase)
Nominal Input Voltage(VAC): 220
3 Output Voltage Range(VDC): 540 ~ 840
4 Rated Output Voltage(VDC): 690
5 Output Current Range(A): 0~ 18
6 Output Current Max(A): 18
7 Dimensions(mm): 550x396x100
8 Weight(KG): 15±0.5
9 Cooling System: Liquid
10 IP Rating: IP67
11 Communication: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
