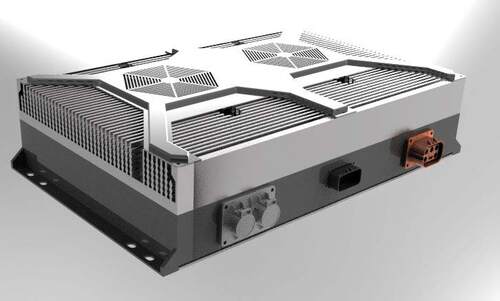

Download:Input 380Vac Output 400Vdc 10KW On Board Charger Fan
Model No. ATRC10K-40027F
Download: Model No_ ATRC10K-40027F 3D Drawing
Model No.:
1. ATRC10K-40027F-I for IEC Charging Mode
2. ATRC10K-40027F-S for SAE Charging Mode
Features
1 Output Power(KW): 10
2 Input Voltage Range(VAC): 156-456 (3 Phase 5 Wire)
Rated Input Voltage(VAC): 380
3 Output Voltage Range(VDC): 324-450
4 Rated Output Voltage(VDC): 400
5 Output Current Range(A): 0 ~ 27
6 Output Current Max(A): 27
7 Dimensions(mm): 548x342x127
8 Weight(KG):27 ±0.5
9 Cooling System: Fan
10 IP Rating: IP67
11 CAN compatibility: CAN2.0 B SAE J1939
12 Enclosure: Aluminum alloy
13 Pre-charge & Isolated: Supported
14 Software: Digital software design
15 Online Upgrade & Fault Diagnosis: Supported
