Download: 3 in 1 PDU+1KW DC/DC + 3.3KW OBC
96V Forced air cooling system
Overview
1.1Summary

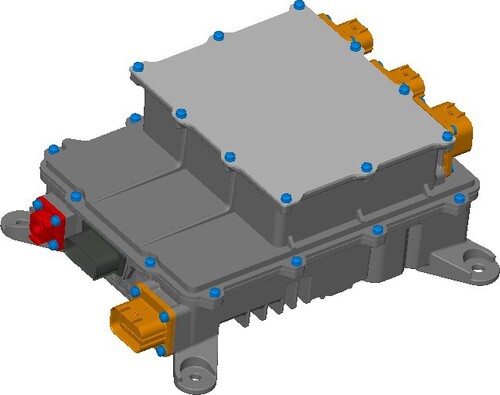

This product is a three-in-one assembly of on-board charging, DCDC converter and Power Distribution Unit developed for new energy vehicles, with the characteristics of high integration and high power density. The main function of the on-board charger (OBC) is to obtain energy from the 220V AC power supply to charge the high-voltage power battery in the vehicle. During the charging process, the power battery management system monitors the charging status in real time. The OBC responds to the voltage and current commands given by the BMS, and provides status feedback to achieve self-diagnosis. The main function of the DC/DC is to convert the high-voltage DC power of the power battery pack into 13.8V low-voltage DC power to charge LV battery and power the vehicle accessory system. The main function of the PDU is to integrate the high-voltage power distribution system of the entire vehicle. The product uses a cast aluminum shell and connectors, and the protection level reaches IP67.
