Download：1.2KW DCDC Converter Module
Model NO. ATF1K2-540S28PM-G
1.Product Overview

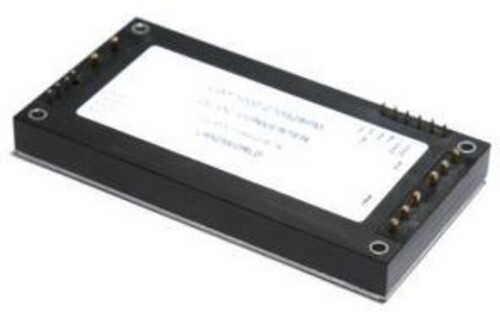

ATF1K2-540S28PM-G series is a 1200W standard full-brick single output module, input 400~750Vdc,rated output voltage 28Vdc, output current 43A, efficiency up to 93%. Operating temperature range:
-55 ℃ ~ 100℃ (case temperature), designed by: SJ20668-1998 "General Specification for Microcircuit
Modules"
2.Electrical Characteristics
- Output voltage adjustment range: 50% ~110%
- 28Vout typical, Full load 1200W
- Built-in ORing fault protective circuit
- No minimum load limit
- Low output ripple& noise
- Wide input range: 400Vdc ~750Vdc
- Excellent thermal performance
- With parallel operation function
