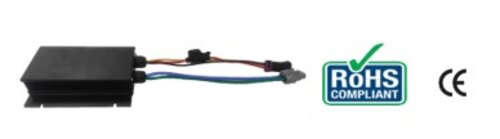

Download: 300W DC-DC Converter
Model No.: ATDSS300D-48 series
Feature
1.Ultra-wide input voltage range: 28-60VDC
2.Output Power: 300W isolated output
3.High efficiency: up to 90% efficiency
4.Output voltage: 12V, 13.8V, 24V, 28.5V
5.IP66 protection grade
6.Six-sided metal shielding, good EMC performance
7.Remote power on/off control
8.Isolation withstand voltage: 1150VAC/1 minute
9.Operating temperature range: -40℃~70℃
10.Compact, multiple installation methods optional
11.Rich protection functions: input under voltage, anti-reverse connection protection, output overvoltage,overcurrent, short circuit protection, over temperatureprotection, etc.
12.Good for battery load
13.10-year design lifetime
