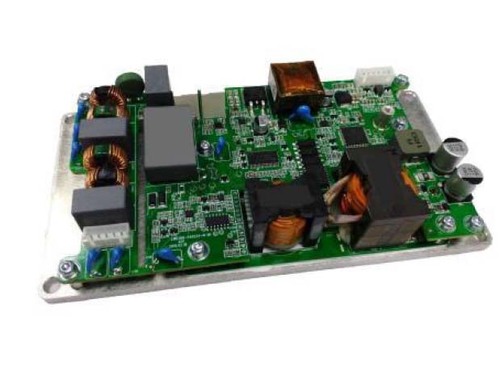

Download: 300W DC/DC Converter Moudle Specificaiton
Feature
● Nominal Input Voltage :27v.
● Input Voltage Range At Rated Load :200~800 Vdc
● Output Voltage Range: 12±0.5v/24±0.5v
● Ripple Voltage At Nominal Condition:<250mvppp At 25˚c
● Nominal Output Current : 25A/12.5A.
● Insulation Resistance > 1 Mega Ohm.
● Testing To Be Done As Per Signed Off Ctr
● Component Should Meet The Elv/rohs Requirement
● Ingress Protection: Ip65.
● Component Meets Pulse 5b Test For 24v System At Us*= 65v , Ri= 1ohm.
● Component Meets Radiated Emission =class 3
● Component Meets Conducted Emission=class3.
● Box Size (id)- 178x90x33mm
● Qty- 18 Nos.
● Weight- 0.5 Kg
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (Vdc) |
Output Voltage (Vdc) |
Output Current (A) |
Efficiency | Size (mm) | Cooling system | Weight (Kg) | Certificate |
| 1 | 300W DC/DC CONVERTER |
ATD300-540S12-M | 300 | 200~800 | 12 | 25 | ≥95% | 178x90x33 | N/A | 0.5 | GB/T |
| 2 | ATD300-540S24-M | 24 | 12.5 |
Specification
| Description | Technical specifications | Remark | ||||||||||||||||||||||||||||
| Operating temperature | -40~85℃ | ambient temperature | ||||||||||||||||||||||||||||
| Rated output power | 300W | Peak power 360W | ||||||||||||||||||||||||||||
| Input voltage range | 200~800VDC | |||||||||||||||||||||||||||||
| Output rated voltage | 12VDC | |||||||||||||||||||||||||||||
| Rated output current | 25A | |||||||||||||||||||||||||||||
| Auxiliary power VCC | 9~32VDC | VCC | ||||||||||||||||||||||||||||
| Efficiency | ≥92% | Rated voltage | ||||||||||||||||||||||||||||
| Output voltage ripple | ≤500mVPK-PK | |||||||||||||||||||||||||||||
| Output voltage accuracy | ±0.5VDC | |||||||||||||||||||||||||||||
| Wake-up method | CAN, hard wire | |||||||||||||||||||||||||||||
| Communication method | CAN-BUS | |||||||||||||||||||||||||||||
| Quiescent Current | ≦5mA | Consume battery current in sleep/stop state | ||||||||||||||||||||||||||||
| Protection characteristics | Input over and under voltage, output over and under voltage, input anti-reverse connection, output over current and short circuit protection, over temperature protection | |||||||||||||||||||||||||||||
| EMC characteristics | GB/T 18655-2010 | |||||||||||||||||||||||||||||
| Dimensions | 178x90x33mm | |||||||||||||||||||||||||||||
| Weight | ≦0.5KG | |||||||||||||||||||||||||||||
Connector model
| Position | Function | Brand | Socket model | Plug model | ||||||||||||||||||||||||||
| A | HV DC input | JST | B5B-XH-A | XHP-5(PIN:SXH-001T-P0.6N) | ||||||||||||||||||||||||||
| B | Signal Control | JST | B6B-XH-A | XHP-6(PIN:SXH-001T-P0.6N) | ||||||||||||||||||||||||||
