2.5KW & 3KW DC/DC Converter Module Series
Model No.
|
2.5KW |
ATD2K5-540S14-TR2000 |
ATD2K5-360S14-TR2001 |
ATD2K5-144S14-TR2002 |
|
3KW |
ATD3K-144S14-TR2004 |
ATD3K-144S27-TR2005 |
ATD3K-360S27-TR2006 |
|
3KW |
ATD3K-540S27-TR2007 |
ATD3K-540S48-TR2008 |
ATD3K-360S48-TR2009 |
Product Introduction

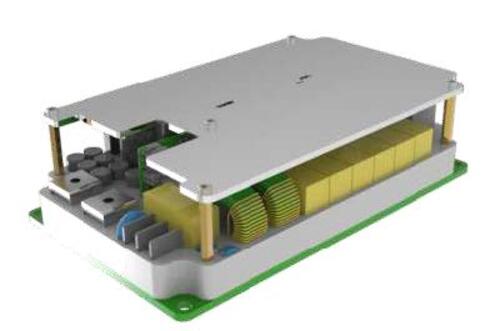

AT-TR2000 series on-board DC-DC converter is a high-power, high-density and high-efficiency DCDC
converter specially developed for new lithium-ion electric vehicles, logistics vehicles, special
vehicles, construction machinery and other new energy vehicles. It is designed and developed with
modular, standardized and universal design ideas.Fully digital control technology design, flexible and
intelligent control, good protection characteristics, strong system robustness. Built-in microprocessor
communicates with the monitoring unit, and the internal parameters can be set or adjusted by the upper
monitoring unit through the CAN interface.
It has multiple protection functions such as input over-voltage and under-voltage protection, output
over-current protection, output over-voltage protection, output short-circuit protection, and overtemperature
protection.
