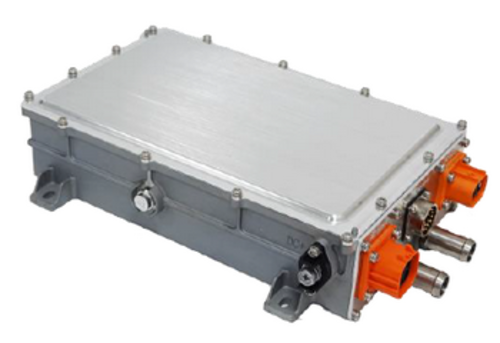

Combo 6.6KW OBC+2.2KW DC/DC Converter


Model No.:ATD2K2CB6K6-D14C750-W

Power:6.6KW OBC+2.2KW DC/DC

Input Voltage:

OBC:85~265VAC DCDC:500~850VDC

Output Voltage:

OBC:500~850VDC DCDC:9~16VDC

Output Current:

OBC:10A DCDC:158A

Efficiency:≧94%

Code ATD2K2C6K6B-D14C750





Download : Combo 6.6KW OBC+2.2KW DC/DC Converter Specification

Download : Combo 6.6KW OBC+2.2KW DC/DC Converter 3D Drawing

Features
● Output Power:
OBC:6.6KW
DCDC:2KW
● Input Voltage:
OBC:85~265VAC
DCDC:500~850VDC
● Output Voltage:
OBC:500~850VDC
DCDC:9~16VDC
● Output Current:
OBC:10A
DCDC:10A
● Dimensions:326x211x83mm
● Cooling System:Liquid
● Communication:CAN 2.0
● Weight :≦9KG


Electrical Characteristics

On Board Charger Charging Mode

Specification

Remark

Rated output power

6.6KW



Input voltage range

85~265VAC



Input Current

32A Max



Power factor

≥0.99(220Vac,Fully loaded)



Output voltage range

500~850VDC

Can be adjusted according to battery voltage

Max output current

10A



Efficiency

≥94%

Typical efficiency, nominal voltage

Voltage accuracy

±1%



Current accuracy

±1%



DC/DC mode

Input voltage range

500~850VDC



Input current range

<10A @240Vdc full load



Efficiency

≥94%



Output voltage range

9-16VDC



Rated output voltage

14V



Rated output current

158A



Rated power

2.2KW



Peak power

2.5KW



Voltage ripple

300mV Max



Others

Low voltage wake up

12Vdc&200mAmaxWAKE_UP  Signal

Wake  BMS/VCU

Wake-up method

CAN, DC, CC/CP

Support reservation charging

Communication method

CAN-BUS



Protection characteristics

Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection



EMC characteristics

GB/T18387-2008EN 55022



Operating temperature

-40-85℃

Coolant inlet temperature

Dimensions

326x211x83mm



Protection level

IP67



Cooling method

Liquid cooling, flow≥8L/min



Weight

≤9KG
