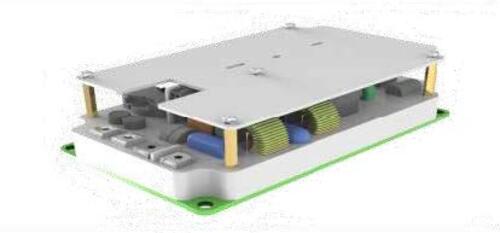

1KW DC/DC CONVERTER MODULE
MODEL NO. ATD1K540S12M-HD1010-12F
Product Introduction
The ATD1K540S12M-HD1010-12F vehicle-mounted DC-DC converters are high-power, high-density and highefficiency
DC-DC converters specially developed for new lithium-ion electric vehicles, logistics vehicles, special
vehicles, engineering machinery and other new energy vehicles. They are designed and developed with modular,
standardized and universal design ideas.
The module is designed with full digital control technology, with flexible and intelligent control, good protection
characteristics and strong system robustness. It has its own microprocessor to communicate with the monitoring unit, and
the internal parameters can be set or adjusted by the superior monitoring unit through the CAN interface.
It has multiple protection functions such as input over-voltage and under-voltage protection, output over-current
protection, output over-voltage protection, output short-circuit protection, and over-temperature protection.
