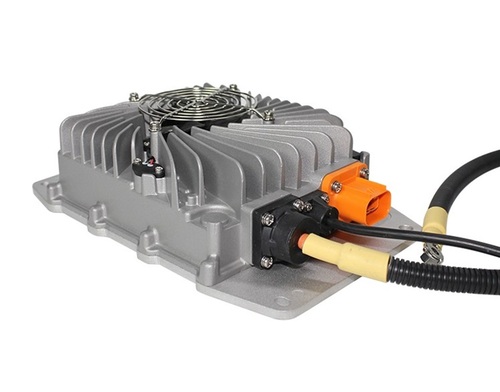

Download:1.5KW DC/DC Converter Fan System Specification
Model No_ATD1K5-7212-F
Model No_ATD1K5-11512-F
Model No_ATD1K5-14412-F
Model No_ ATD1K5-32012-F
Features
●Output Power:1.5KW
●Input Voltage:55~97/72~138/88~195/206~454VDC
●Output rated voltage:14VDC
●Output Currant:110A
●Dimensions:182.2x278x78.5mm
●Cooling System:Fan
●Communication Method:CAN
●Weight: ≦3KG
Series Specification
Item | Part Name | Model Name | Power (W) | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (A) | Efficiency | Size (mm) | Cooling System | Weight (Kg) | Certificate |
1 | 1.5KW DC/DC CONVERTER |
ATD1K5-7212-F | 1500 | 55-97 | 14V | 110A | ≥94% | 182.2x278x78.5 | Fan | 3.0 | CE |
2 | ATD1K5-11512-F | 72-138 | |||||||||
3 | ATD1K5-14412-F | 88-195 | |||||||||
4 | ATD1K5-32012-F | 206-454 |
Specification
Item |
Condition |
Remark |
Storage Temperature |
- 40 ℃~105 ℃ |
/ |
Operating |
-40 ℃~ 60 ℃ |
|
Humidity |
5 % ~ 95 % |
Relative |
Cooling Way |
Fan |
/ |
Altitude |
Normal operation under 2000 m,given the usage conditions above |
/ |
Working noisy |
≤70dB |
|
IP Level |
IP67 |
|
Output |
Nominal output voltage |
14V |
Output voltage range |
9~15V |
|
Nominal output current |
143A |
|
Peak current |
140A |
|
Nominal power |
1500W |
|
Peak power |
1800W lasting 6 minutes |
|
Efficiency |
≥94% |
|
Dynamic response time |
<50ms |
|
Voltage regulation |
≤1% |
|
Load regulation |
≤1% |
|
Voltage control accuracy |
≤1% |
|
Current control accuracy |
≤2% |
|
Quiescent current |
≤1mA @14V |
|
Ripple voltage coefficient |
≤2% @nominal working state |
