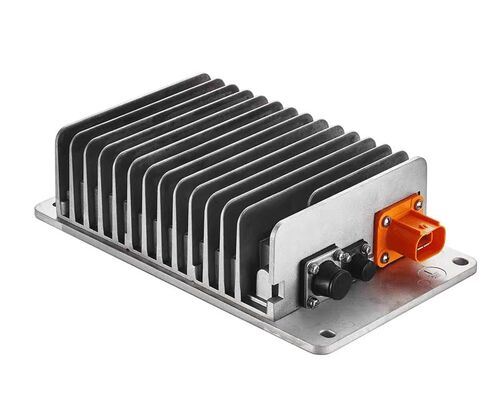

.jpg "1KW DC/DC Converter Natural Cooling System |Products|DC/DC Converter (Fuel cell)")
.jpg)
Download: Model No_ATD1K-7212-A Specificaiton
Download: Model No_ATD1K-7212-A 3D Drawing
Features
● Output power: 1KW
● Input voltage: : 44~97/74~162/103~227/206~454VDC
● Output voltage: 14VDC
● Output Current: 72A
● Dimensions：278x158.7x73mm
● Cooling System：Natural Cooling
| Item | Part Name | Model Name | Power (W) | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (A) | Efficiency | Size (mm) | Cooling System | Weight (Kg) | Certificate |
| 1 | 1KW DC-DC CONVERTER |
ATD1K-7212-A | 1000 | 44-97 | 14V | 72A | ≥94% | 278x158.7x73 | Nature-cooled | 2.7 | CE |
| 2 | ATD1K-10812-A | 74-162 | |||||||||
| 3 | ATD1K-14412-A | 103-227 | |||||||||
| 4 | ATD1K-32012-A | 206-454 |
Environmental Specification
Working environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-40℃ |
60℃ |
Storage environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-55℃ |
100℃ |
●Humidity：relative humidity 5%~95%，no condensation
●Altitude：≤2000m
●Working noisy：max when working ≤65dB，meet China standard QTC 895-2011
|
Output |
Nominal output voltage |
14V |
|
|
Output voltage range |
9~15V |
||
|
Nominal output current |
72A |
||
|
Peak current |
88±2A |
||
|
Nominal power |
1000W |
||
|
Peak power |
1200W lasting 6 minutes |
||
|
Efficiency |
≥94% |
||
|
Dynamic response time |
＜50ms |
|
|
|
Voltage regulation |
≤1% |
|
|
|
Load regulation |
≤1% |
|
|
|
Voltage control accuracy |
≤1% |
|
|
|
Current control accuracy |
≤2% |
|
|
|
Quiescent current |
≤1mA @14V |
|
|
|
Ripple voltage coefficient |
≤2% @nominal working state |
|
